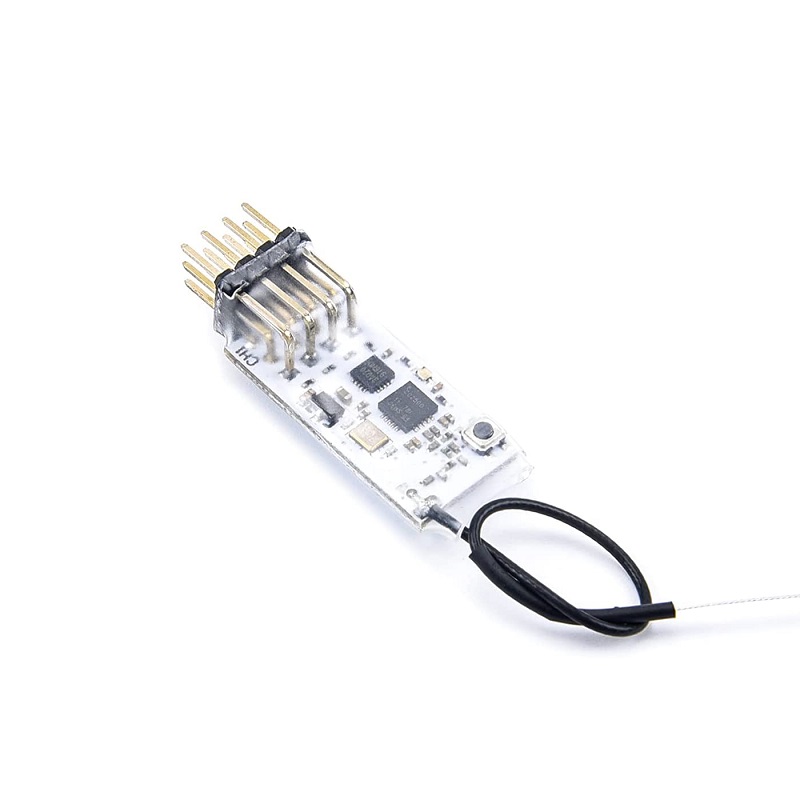

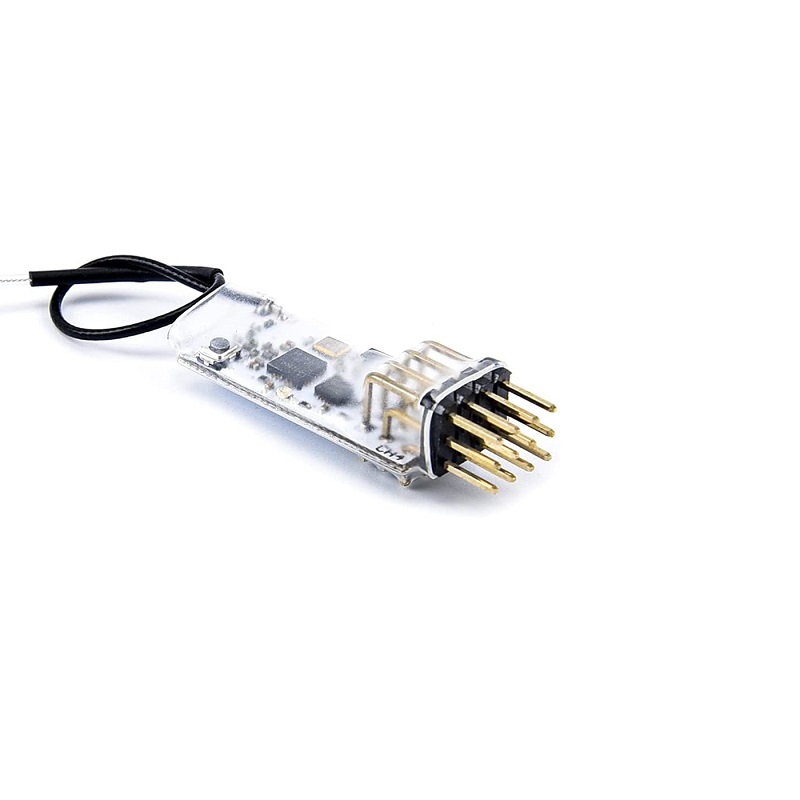

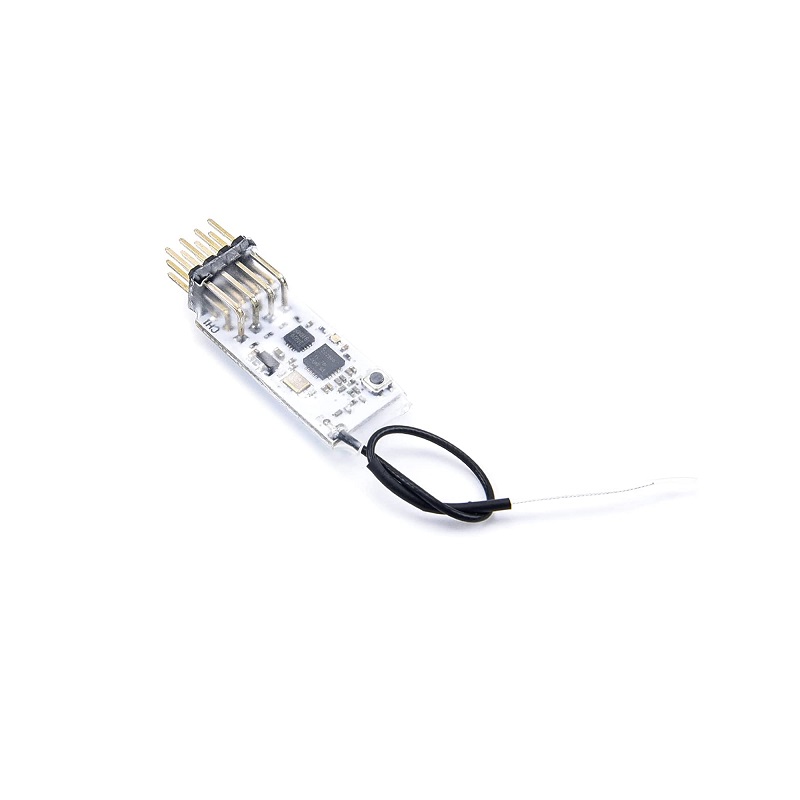

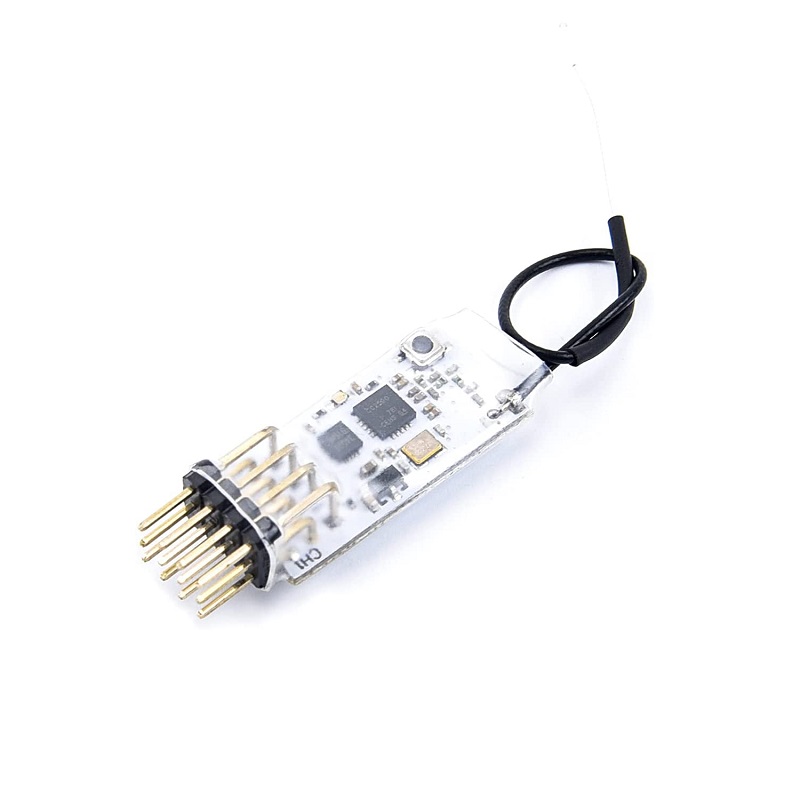

2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output

2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter

Specifications:

1. Working frequency: 2400Mhz-2483. 5Mhz
2. Working mode: Frequency-Hopping Spread Spectrum
3. Working voltage: 4.0V-15V
4. Working current: <25mA (+8.0V)
5. Output channel: 4CH PWM
6. Size: 27.7 x 12.7  x  10mm

How To Bind:

1. Power the receiver, the led flashes slowly, press the bind button for about 1 second, the led will flashes quickly which indicates the receiver is in binding mode
2. Power on the remote control
   • Futaba double-leaf remote control (board control) choose S-FHSS system, (gun control) choose S-FHSS  or S-FHSS NORM system
   • Frsky remote control select D8/D16 system, set to enter bind mode
   • Jumper remote control select Frsky/FrskyX system, set to enter bind mode
3.  Receiver status
   1. Futaba double-leaf mode: The indicator light changes from flashing quickly to steady light, and the code is successfully matched
   2. Frsky /jumper mode: The indicator light changes from fast flashing to slow flashing, the remote control exits Bind mode, the indicator light is always on, and the code matching is successful.

Signal output:

CH1-AIL (Aileron) CH2-ELE (Elevation) CH3-THR (Throttle) CH4-RUD (Direction)

Package Includes :

1 x 2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter
