Product details

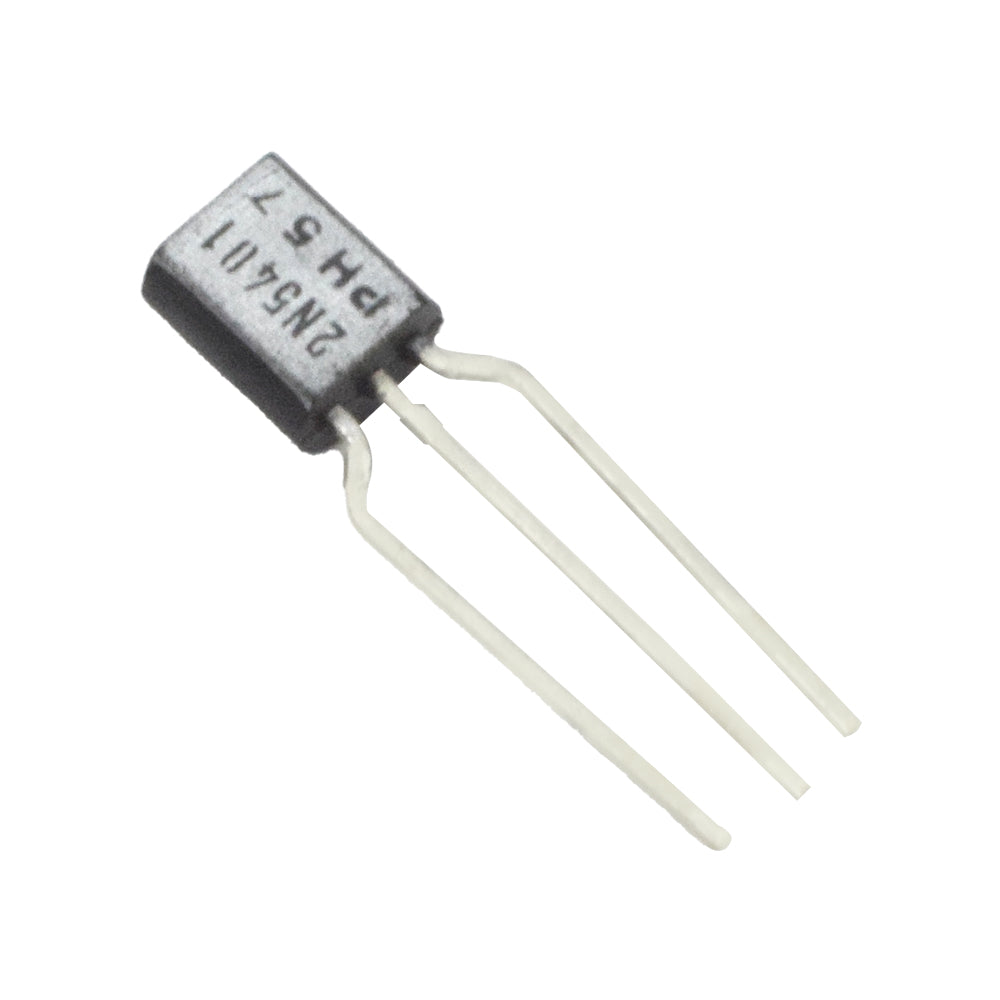

2N5401 is a high voltage PNP transistor it works on low current and high voltage and the low current is 300mA and the high voltage is 150V its mostly used in switching circuit its use in power supply switching applications its use to control the flow of current its an electronics switch, its applications are SMPS, Motor control, UPS ,PFC in telephony Etc.
Features
Its used in switching operation
Its low current 300mA
It has three terminal collector emitter base
Low leakage current
It has the capability to improved dv/dT
- 100% avalanche energy rated
Specification
| Model | 2N5401 |
| Type | Transistor |
| Package | (TO-92;SOT 54) |
| Brand | PHILIPS |
| Emitter base voltage | -5V |
| Collector emitter voltage | -150V |
| Collector base voltage | -160V |
| Operating and Storage Temperature Range | -65°C TO 150°C |
| Country of Origin | China |
