Product details

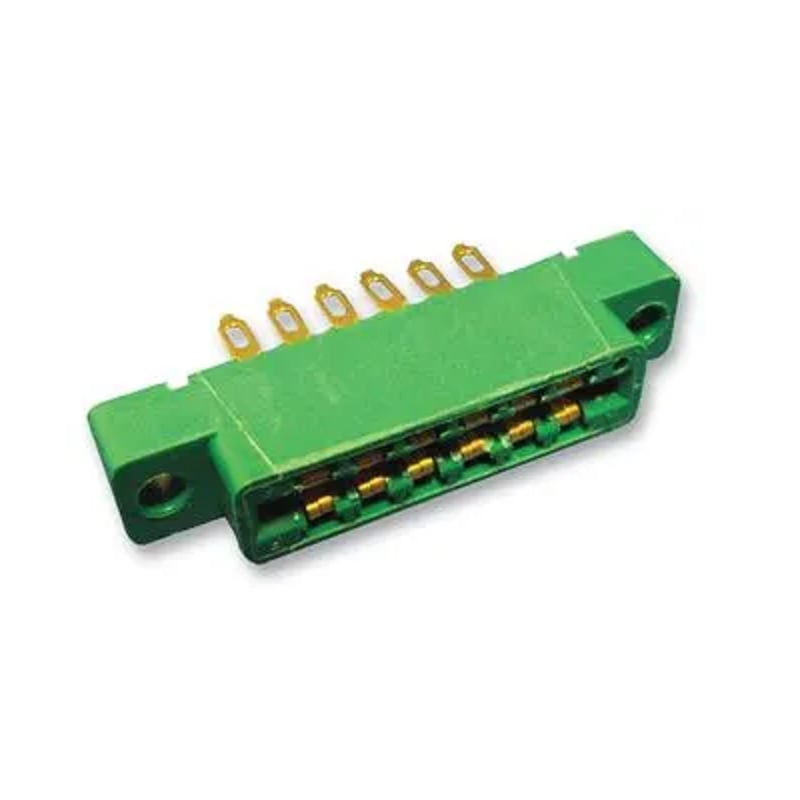

The 50-12A-30 is a 12-way 2-row Card Edge Connector with glass-filled polyester insulator and gold over nickel-plated spring brass contacts. This CARDCON series connector features solder eyelet, single readout and double readout on 0.2-inch row centres. Available with unique tails for PC board retention, holds the connector firmly on the board during wave soldering operations. Ideal for applications involving vibration or board irregularities.
Note: For more details refer to datasheet.
Features:
- UL94V-0 Flammability rating
- -65 to +105°C Operating temperature range
- 1800VAC Withstand voltage
- 5A Current rating
Packages Includes:
1 x 50-12A-30-CARD EDGE CONN, DUAL SIDE, 12P
