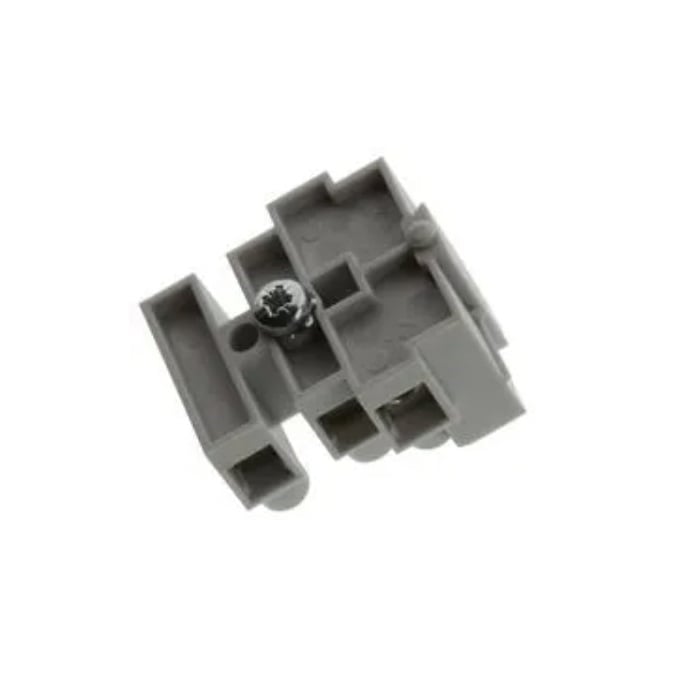

503SI03E-TERMINAL BLOCK, FUSED, 3POS

The 503SI03E is a 3-position fused Terminal Block with grey nylon 6.6 (polyamide 6.6) molding, tinned brass inserts and M3 steel, zinc-plated, chrome screws, and 6mm² conductor area. A common dovetail enables mixed assemblies to be constructed by clipping on additional 1-pole lengths to provide multiple versions of fused and unfused terminals. All variations can be supplied with or without wire protectors, earth versions, and screw wire connection methods.

Features:

1. Easy to use
2. Easy to handle
3. Good quality product

Specifications:

1. No. of Positions: 3Ways
2. Conductor Area CSA: 6mm²
3. Wire Connection Method: Screw
4. Rated Current: 10A
5. Rated Voltage: 380V
6. Fuse Size Held: 5mm x 20mm

Package Includes:

1 x 503SI03E-TERMINAL BLOCK, FUSED, 3POS
