A2212 10T/13T 1400kV BLDC Motor

A2212 BLDC Motor is a 3-phase out-runner type popular BLDC motor commonly used in Drones and other multirotor applications. The motor is rated for 1400KV and has an efficiency of 80%. The A2212 motor requires an ESC (Electronic speed controller) to control its speed. The motor can be easily be controlled with our 30A ESC and when coupled with our 1045 Propeller Blades it can provide thrust up to 1000gms. Four of these A2212 Motors can be easily mounted on the F450 Quadcopter Frame to provide a total thrust of 4kgs enabling you to build powerful drones.

Specifications of A2212 1400kV BLDC Motor:

• ESC Specifications: 18A (min) / 30A (recommended)
• No Load Current: 500mA @10V
• Nominal Current: 12A/60s
• No. of Cells: 2S or 3S Li-Po
• Thrust with 3S: 1000gm (with 1045 propeller)

Note: Appearance might be differ from the picture shown here.

Package Contains:

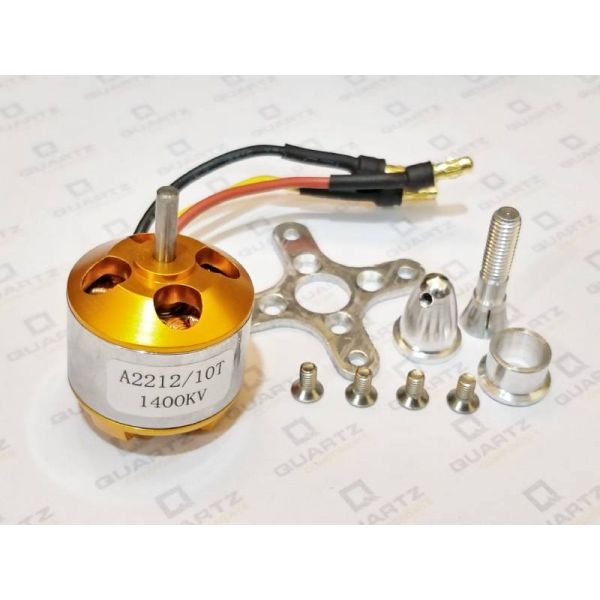

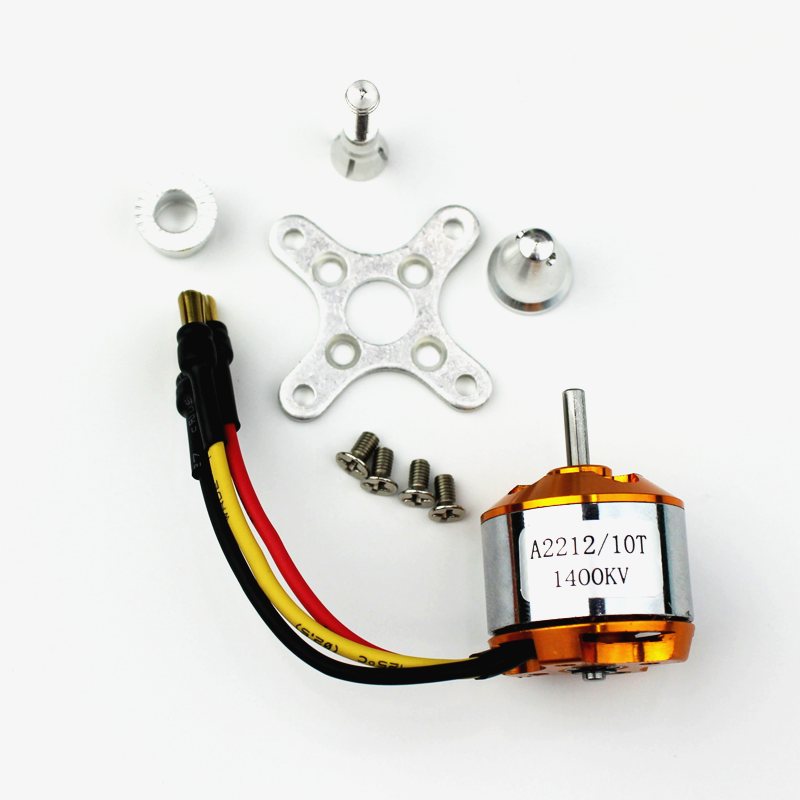

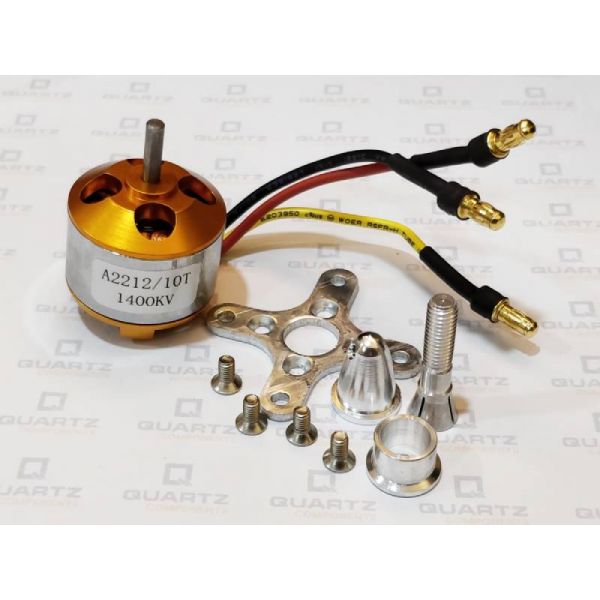

1 x A2212 10T/13T 1400kV BLDC Motor
