Product details
The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater. In the presence of a detectable gas, the sensor’s conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration. The TGS 2600 has a high sensitivity to low concentrations of gaseous air
contaminants such as hydrogen and carbon monoxide which exist in cigarette smoke. The sensor can detect hydrogen at a level of several ppm. Due to the miniaturization of the sensing chip, TGS 2600 requires a heater current of only 42mA and the device is housed in a standard TO-5 package
Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.
Features:
- Low power consumption
- High sensitivity to gaseous air contaminants
- Long life and low cost
- Uses a simple electrical circuit
Package Includes:

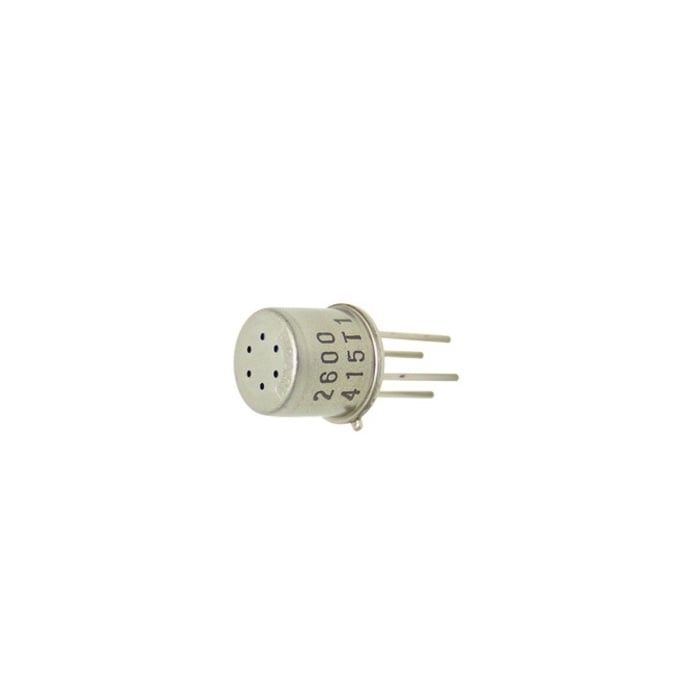

1 x Figaro TGS 2600 Air Quality Sensor
