Product details
This is a High-Quality Warm White Colour SMD LED. These LEDs consume very low power and generally produce a wide angle of light disbursement which can be narrowed through the use of external lenses. The Forward Voltage is 3.0-3.3 volts and the Colour Temperature (CCT) is 3000-3200K.
SMD LEDs are substantially smaller than lead frame-type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. Just like the other SMD LEDs it, has two pins, an anode and a cathode for powering the LED. The most common application of these LEDs is as a Power, indicator purpose, pin status, blinky display, etc.
Pin Configuration
Pin Name | Description |
Anode | Positive terminal |
Cathode | Negative terminal |
Specifications
| Brand | Proton |
Product | 2835 0.5W Warm LED |
Power Consumption | 0.5 Watt |
| Led Shape | Rectangle |
Colour | Warm White |
Forward Voltage(VF) | 3.0V-3.3VDC |
Colour Temperature (CCT) | 3000-3200K |
Forward Current(IF) | 150mA |
| Lumens(LM) | 60-65 |
Mounting | SMD |
| Dimensions(LxB) | 3.5mm x 2.8mm |

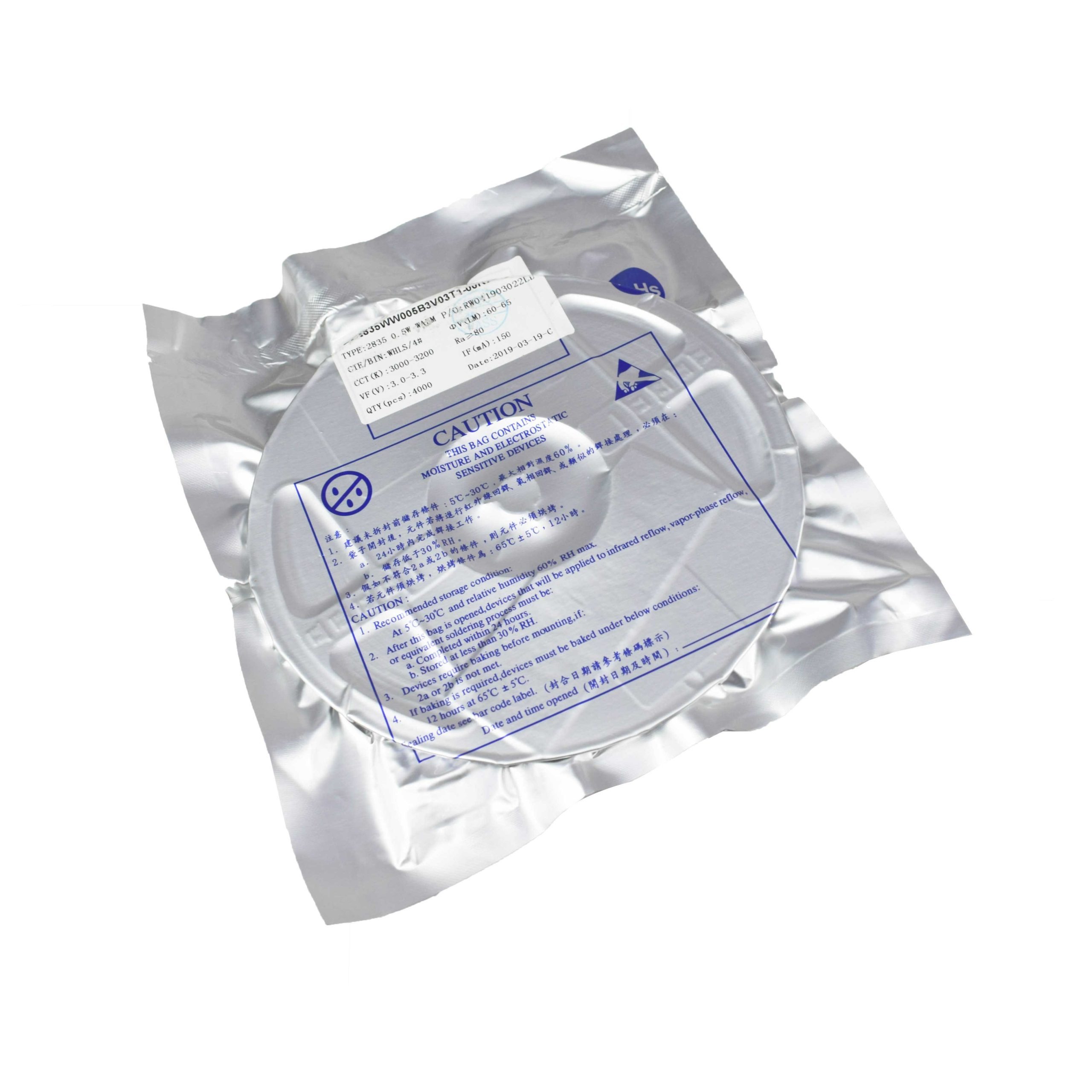

| Quantity | Pack of 4000Pcs in 1 Pack |
| Country of Origin | China |
