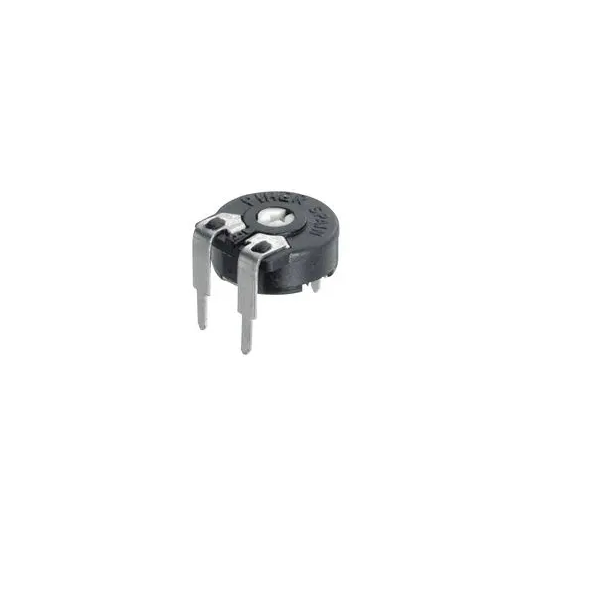

PT15NV02-104A2020-S-Trimpot Potentiometer

PT15NV02-104A2020-S
Trimpot, Single Turn, Carbon, Top Adjust, 100 Kohm, Through Hole, 1 Turns

Specifications:

1. Trimpot Type: Single Turn
2. Element Material: Carbon
3. Adjustment Type: Top Adjust
4. Track Resistance: 100kohm
5. Potentiometer Mounting: Through Hole
6. No. of Turns: 1Turns
7. Product Range: PT-15
8. Power Rating: 250mW
9. Resistance Tolerance: ± 20%
10. Temperature Coefficient: ± 300ppm/°C
11. Trimpot Shape / Size: 15 mm Round

Package Includes:

1 x PT15NV02-104A2020-S-Trimpot Potentiometer
