Product details

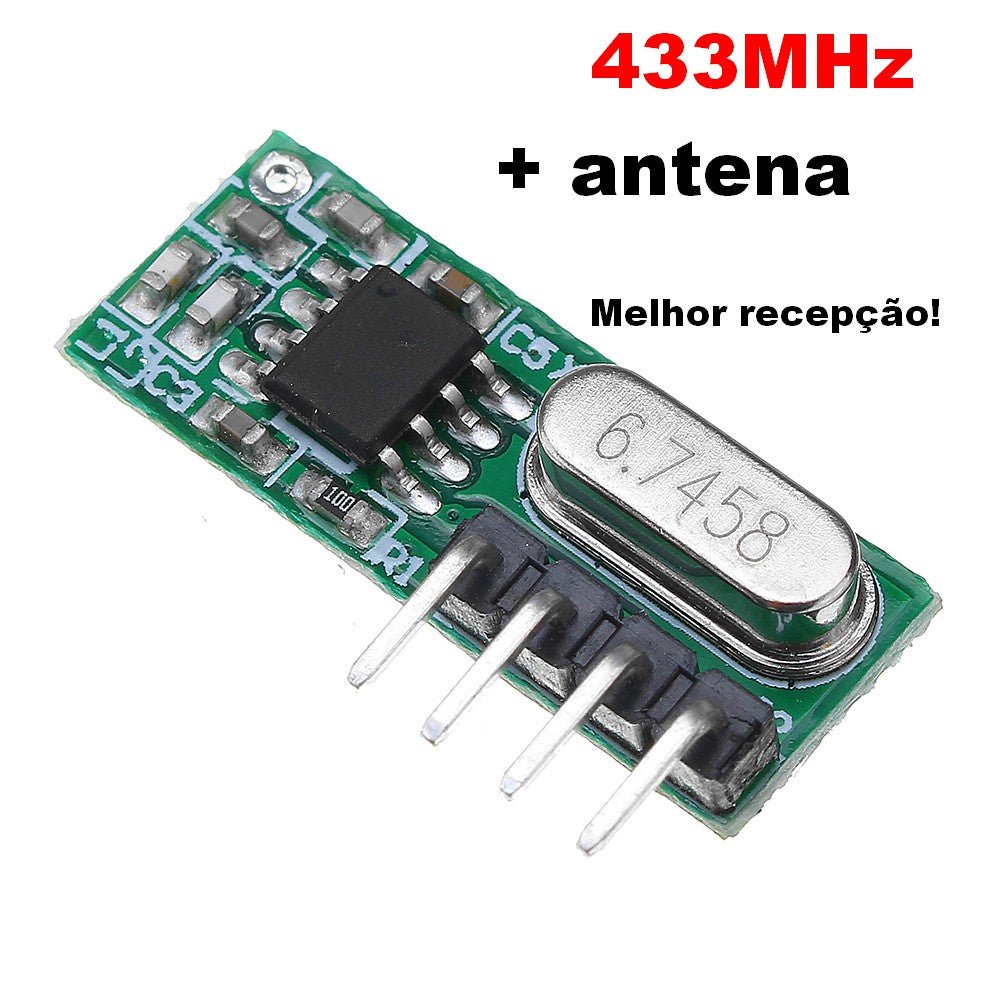

RF Receiver Module 433.92MHz RX217M “Superheterodyne” Fully integrated solution improves reception and frequency stability compared to older modules that use inductor and multiple discrete components.
Specification
- Power: 2 to 5V
- Low consumption: <6mA Carrier
- Frequency: 433.92MHz
- Sensitivity: -110dBm
- Max data rate: 10kbps

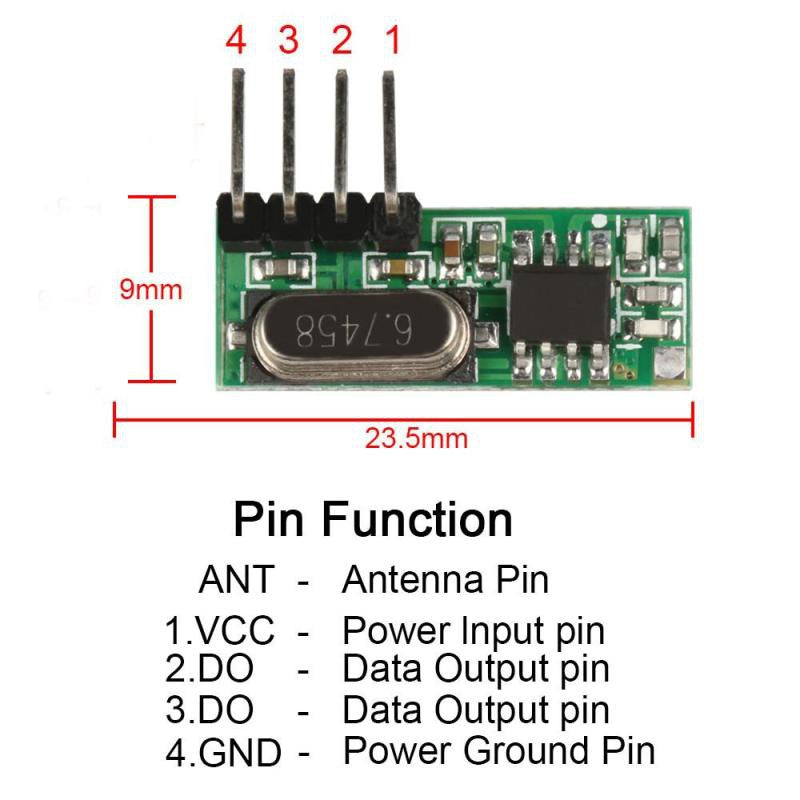

- Board dimensions: 23.5 x 9.0 x 1.0 mm
