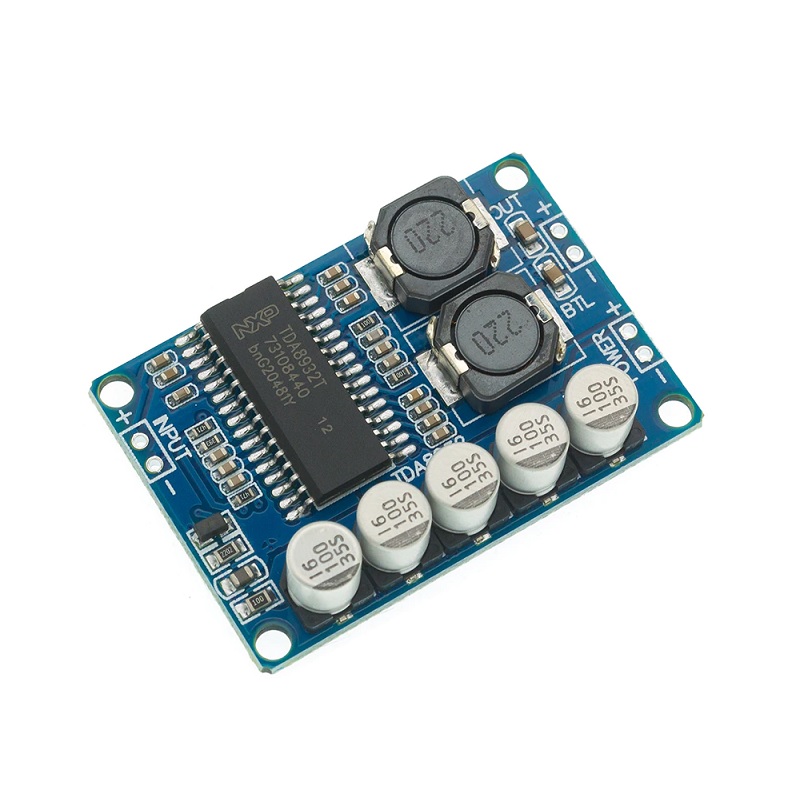

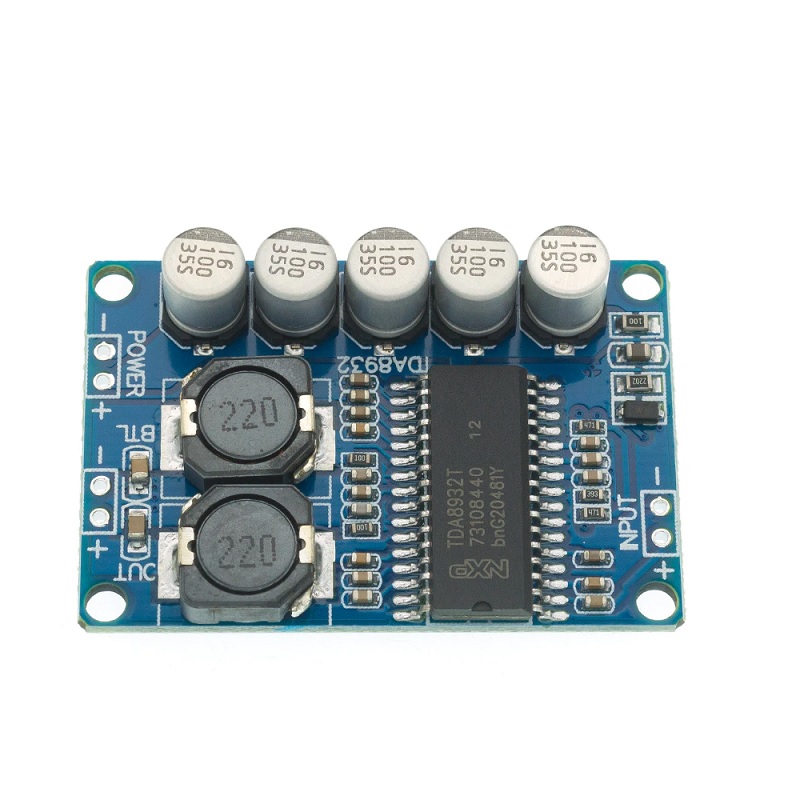

TDA8932 Digital Power Amplifier Board 35W Mono High-Power TDA8932 Low Power Consumption

TDA8932 Digital power amplifier board 35W Mono Amplifier Module uses a high-performance digital amplifier TDA8932 chip, a small size, high efficiency, high power, good sound quality, without additional installation of the radiator, very suitable for the transformation of active speakers, electro-acoustic project implementation, product development and other audio applications.

Features:

1. The board uses a high-performance digital amplifier TDA8932 chip.
2. Produce good quality sound by this module.
3. Mono digital audio power amplifier chip.
4. High output and low power consumption.
5. Suitable for the transformation of the active speakers, product development, and other audio application.

Specification:

1. Module Type: TDA8932 35W
2. Operating Voltage: Single DC10 ~ 30V
3. Recommended Voltage: 24V
4. Current: Above 2A Switching Power Supply
5. Output Power: 35W x 1
6. Speaker Impedance: 4-8 ohm, 8 ohm best
7. Circuit configuration: Mono BTL Output

Package Includes:

1 x TDA8932 Digital Power Amplifier Board
